Nominal diameter

300 mm (12'')

Weight

15 Kg for 21mm Neckring

Fastening points

4

Working Pressure

3 Bar or 4 Bar

Test Pressure

4,5 Bar or 6 Bar

Working Temperature

-40° to + 200°C

Made of (material)

316L / 1.4404 stainless steel manlid

Seal material

seal not included

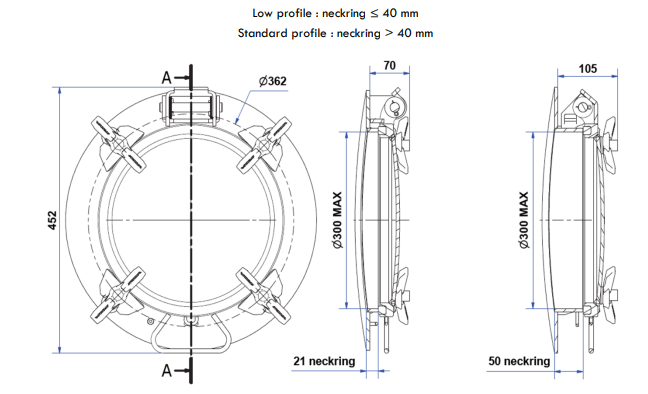

Neckring height

from 21 to 200 mm - Other on request

Neckring thickness

6 mm - Other on request

Fastening

Swingbolts with captive wing nuts

Perfect tightness

Trapezoïdal seal groove - Seal 14x14

Coverlid seal EPDM/PTFE

11 13 75 00 20

Swingbolt ass. (58mm)

12 93 86 92 00

Swingbolt ass. (83mm)

12 93 86 91 00

Hinge kit

12 13 68 91 00

4 points low profile coverlid no TIR (316L)

CMS354D4SS

4 points standard coverlid no TIR (316L)

CMS354D4DS
