Nominal diameter

500 mm (20")

Weight

110 Kg

Fastening points

20 on a 586 PCD

Working Pressure

4 to 10 Bar

Test Pressure

6 to 15 bar

Working Temperature

-40° to + 190°C

Made of (material)

316L / 1.4404 stainless steel manlid

Seal material

EPDM/PTFE -NBR/PTFE -PTFE

Neckring height

100 mm - other on request

Neckring thickness

8 mm - other on request

Cover thickness

29 mm or 53mm domed dish end

Reinforcement ring thick.

8mm R900 to R1200

Handling

100 mm - other on request

Coverlid

11 15 07 20 00

Coverlid seal

11 15 07 00 03

Bolting kit

11 19 13 00 91

Neckring

11 15 07 10 00

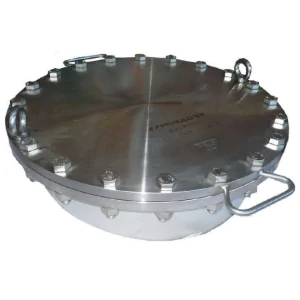

Complete ND500 bolted manlid - working pressure 6.67 Bar - made of 316L/1.4404 stainless steel with tongue and groove, PTFE seal

11 15 07 00 00

Complete ND500 bolted manlid - working pressure 6.67 Bar - made of 316L/1.4404 stainless steel -with reinforcement ring, tongue and groove, PTFE seal

11 15 68 00 00
