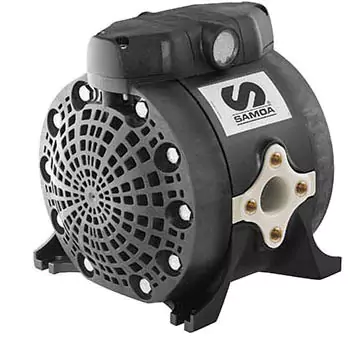

1” Pneumatic Double Diaphragm Pump,- Samoa Pump

Samoa 1” AODD Pump, DF100, PP-Hytrel-PTFE

Dosing, spraying, transferring, evacuating, and spreading a range of fluids are all possible using air-operated double diaphragm pumps. Perfect for typical applications requiring medium flow rates. Pump wetted parts are appropriate for use in corrosive situations and are compatible with even the most hostile fluids. Polypropylene is used to construct the air motor's directional air valve and air chamber covers.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Technical Data

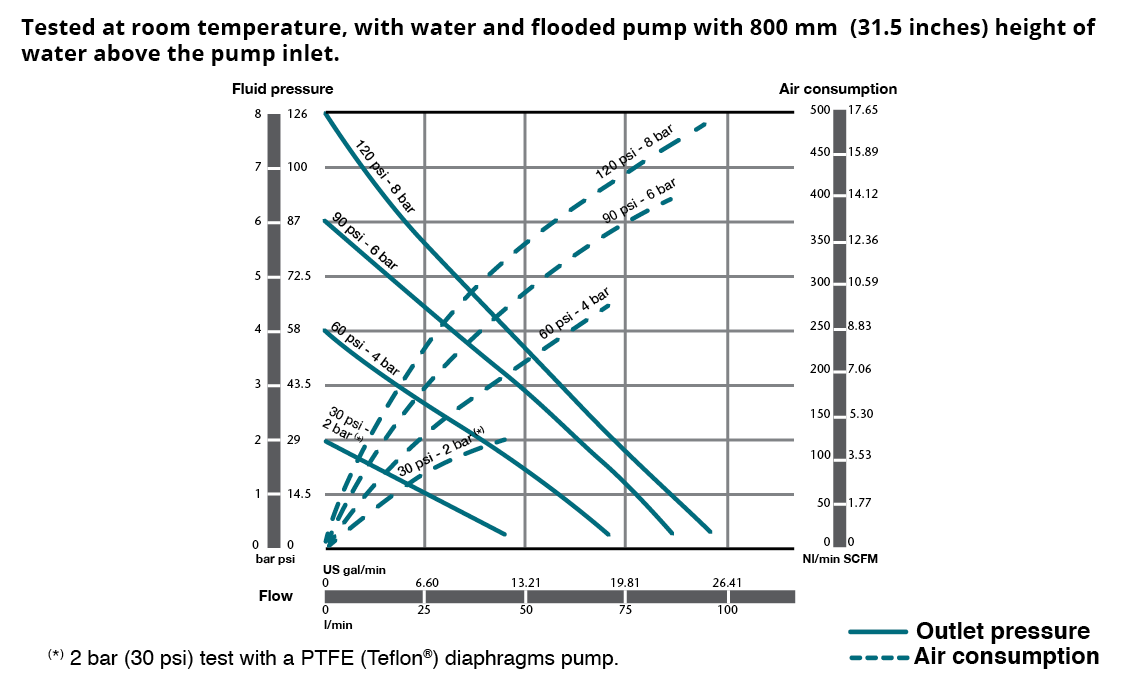

Capacity Chart

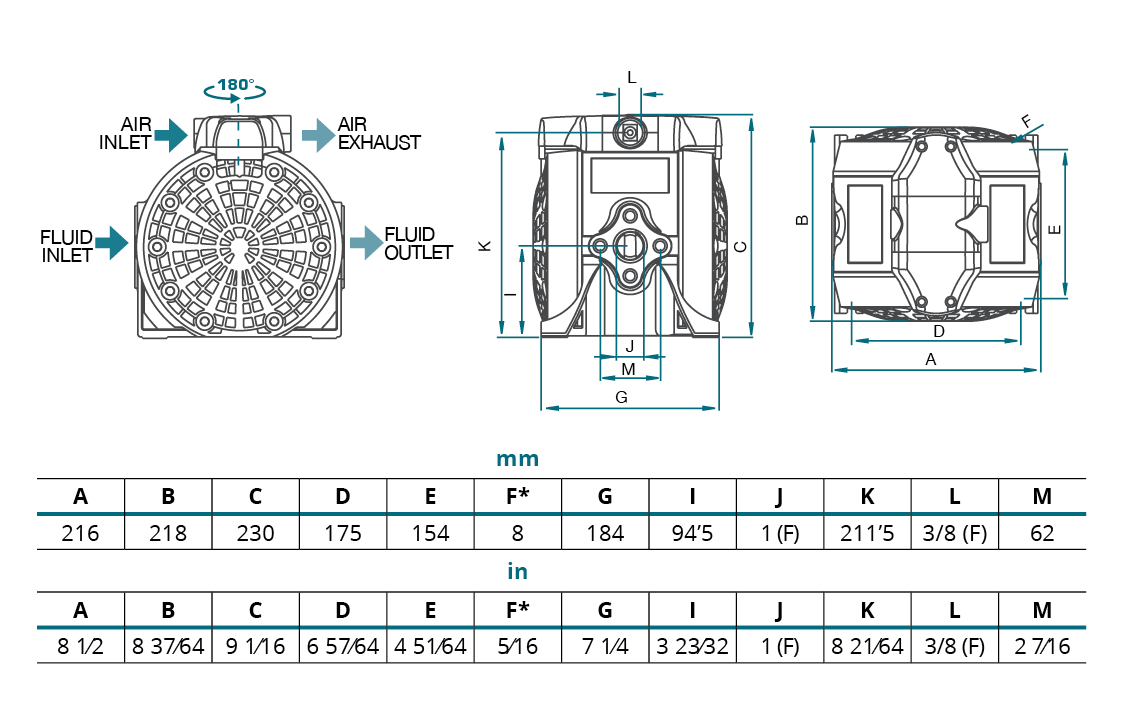

Dimension
Model Box

Maximum wet suction head	7 m (23 ft)
Fluids	Water, Aceite, Non aggressive chemicals
Wetted materials	PTFE, Stainless steel (AISI 316), Polypropylene, Stainless steel, Hytrel
Weight	5.1 kg (11.24 lb)
Air inlet	3/8" NPSM (F)
Delivery per cycle	0.5 l (0.13 gal)
Pump size	1"
Pressure ratio	1:1
Fluid inlet	1" BSPP (F)
Solids in suspension maximum size	4 mm (0.18 ")
Certification	-
Maximum free flow delivery	100 l/min (28 gal/min)
Air pressure operating range	1.5 - 8 bar (20 - 120 psi)
Maximum dry suction head	4.5 m (15 ft)
Fluid outlet	1" BSPP (F)

Product code	Diaphragms	Balls	Seats	Other wetted materials	Air motor	Fluid Path
DF100PDSTSTTBAS	PTFE	PTFE	Stainless steel (AISI 316)	Stainless steel	Polypropylene	Conductive acetal
DF100PKYTWTTBAS	PTFE	PTFE	PVDF	Hastelloy C	Polypropylene	Conductive PVDF
DF100PPSESTMBAS	Santoprene	PTFE	Stainless steel (AISI 316)	Stainless steel	Polypropylene	Polypropylene
DF100PPSTSTTBAS	PTFE	PTFE	Stainless steel (AISI 316)	Stainless steel	Polypropylene	Polypropylene
DF100PPSVSTHBAS	Hytrel	PTFE	Stainless steel (AISI 316)	Stainless steel	Polypropylene	Polypropylene
DF100PPYTWTTBAS	PTFE	PTFE	PVDF	Hastelloy C	Polypropylene	Polypropylene
