¼” Pneumatic Double Diaphragm Pump

1⁄4” Pneumatic Double Diaphragm Pump, DF50

Samoa ¼” AODD Pump, DC20, PP-Santoprene-PTFE

Double diaphragm air-operated pumps for transporting and dosing a range of fluids. For OEM applications and slower-flowing industrial operations. Lower start-up pressure is needed for unbalanced spool valve air motors so that finer flow adjustments can be made using regulating air pressure. Pump wetted materials are suited for usage in corrosive situations and are compatible with the most demanding fluids. Polypropylene is used to construct the air motor's directional air valve and air chamber covers.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Technical Data
Capacity Chart

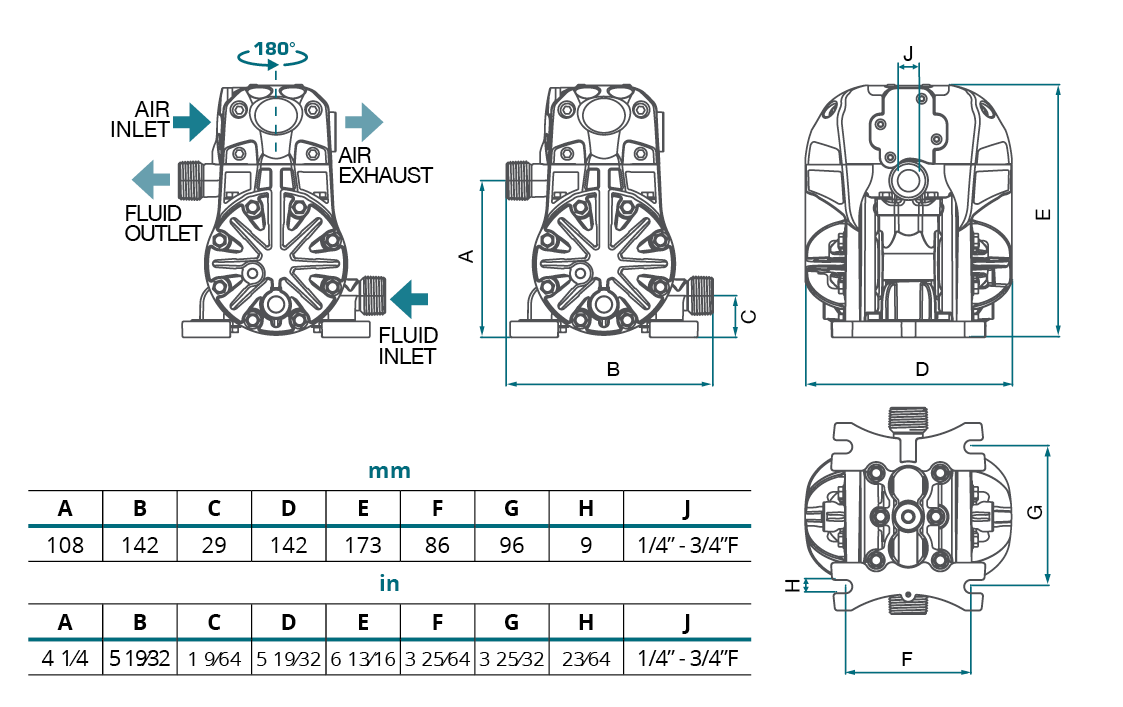

Dimension
Model Box

Solids in suspension maximum size	2 mm (0.18 ")
Air pressure operating range	1.5 - 7 bar (20 - 100 psi)
Wetted materials	Stainless steel, Conductive acetal, Polypropylene, Santoprene, PTFE
Air inlet	3/8" NPSM (F)
Weight	1.2 kg (2.65 lb)
Maximum dry suction head	2 m (6.56 ft)
Fluids	Alkalis, Adhesive, Alcohol, Acids, Water based fluids
Fluid outlet	1/4" BSPP (F)
Pressure ratio	1:1
Maximum free flow delivery	20 l/min (5 gal/min)
Pump size	1/4"
Maximum wet suction head	7 m (23 ft)
Certification	-
Fluid inlet	1/4" BSPP (F)
Delivery per cycle	0.06 l (0.016 gal)

Product code	Diaphragms	Balls	Seats	Other wetted materials	Air motor	Fluid Path
DC20PPSVPTHBAS	Hytrel	PTFE	Polypropylene	Stainless steel	Conductive acetal	Polypropylene
DC20PPSEPTMBAS	Santoprene	PTFE	Polypropylene	Stainless steel	Conductive acetal	Polypropylene
DC20PPYTPTTBAS	PTFE	PTFE	Polypropylene	Hastelloy C	Conductive acetal	Polypropylene
DC20PWYTWTTBAS	PTFE	PTFE	PVDF	Hastelloy C	Conductive acetal	PVDF
DC20PPSTPTTBAS	PTFE	PTFE	Polypropylene	Stainless steel	Conductive acetal	Polypropylene
DC20PDSTCTTBAS	PTFE	PTFE	Acetal	Stainless steel	Conductive acetal	Conductive acetal
