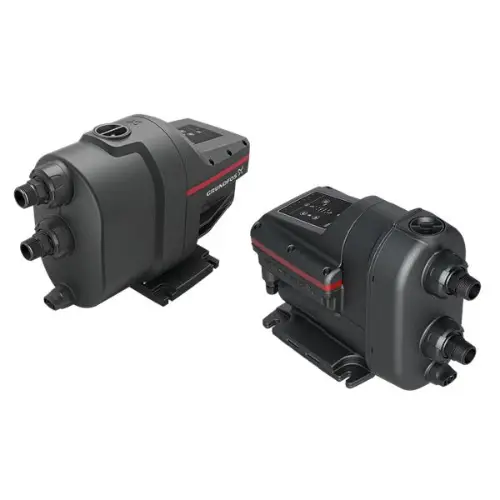

Grundfos Scala

SCALA represents all-in-one integrated self-priming pressure boosters crafted for domestic applications. These boosters guarantee a consistent supply of clean water to households, gardens, and light commercial settings.

Max flow: 7 m³/h
Head max: 55 m
Liquid temperature: 0 .. 45 °C
p max: 10 bar

Suitable for

Domestic ground water intake
Domestic water pressure boosting
Domestic rainwater harvesting

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Scala1
Scala2

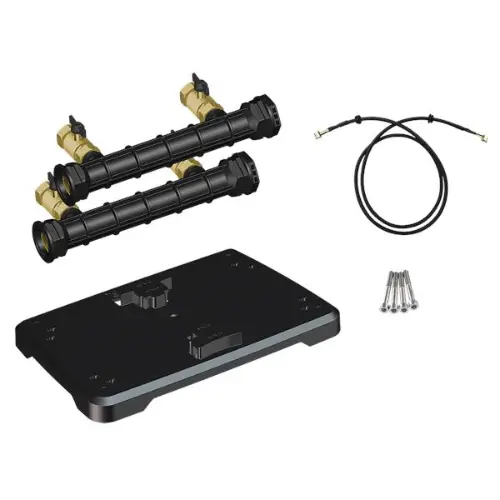

Accessories

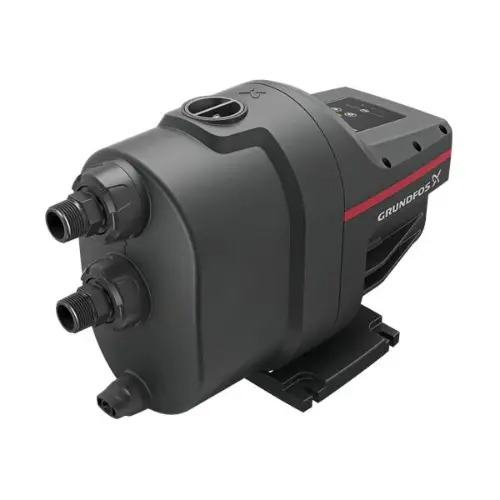

SCALA1 is a fully integrated, compact, self-priming water pressure and irrigation booster pump designed for domestic applications. Featuring a quiet motor, it seamlessly connects to the Grundfos GO app via built-in Bluetooth, allowing for high customization.

Model

SCALA1 5-55
SCALA1 5-35
SCALA1 5-25
SCALA1 3-45
SCALA1 3-35
SCALA1 3-25

Duty Range

Max flow: 7 m³/h
Head max: 55 m
Liquid temperature: 0 .. 45 °C
p max: 10 bar

Applications

Pumping from a roof tank, break tank, or ground tank
Water supply from shallow wells (less than 8 m)
Pressure boosting from city mains water
Taps and showers in the home
Garden and lawn irrigation

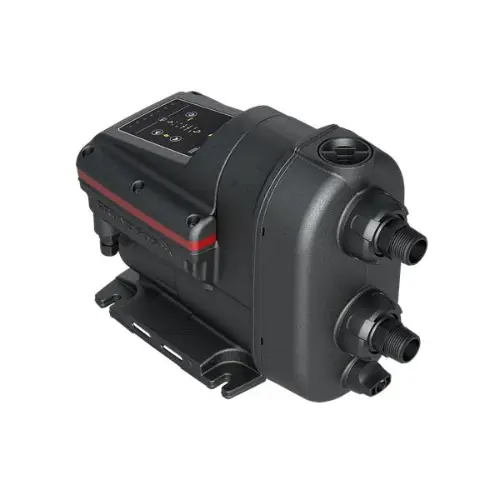

SCALA2 is a compact, integrated, self-priming water booster pump tailored to ensure optimal pressure throughout the home. It operates quietly, boasts easy installation, and guarantees consistent pressure across all taps continuously.

Variants

SCALA2 3-45 - 93013252
SCALA2 3-45 - 93013254
SCALA2 3-45 - 93013322
SCALA2 3-45 - 98562862
SCALA2 3-45 - 98562865
SCALA2 3-45 - 98562870
SCALA2 3-45 - 99027073
SCALA2 3-45 - 99448121

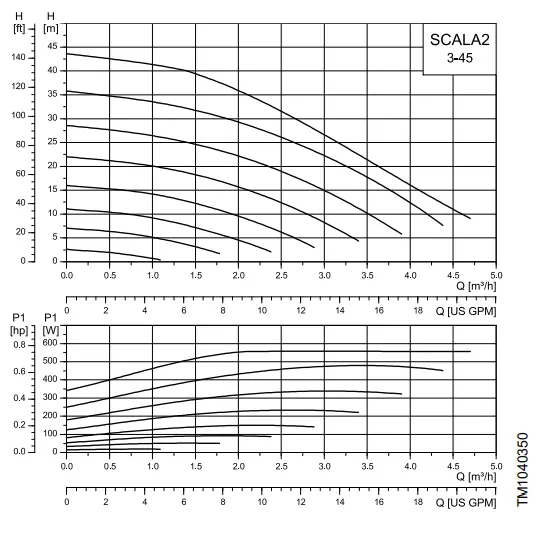

Duty Range

Max flow: 5 m³/h
Head max: 47 m
Liquid temperature: 0 .. 45 °C
p max: 10 bar

Applications

Pumping from a roof tank, break tank, or ground tank
Water supply from shallow wells (less than 8 m)
Pressure boosting from city mains water
Taps and showers in the home
Garden and lawn irrigation

Dimensions

	H1 [mm] [inch]	H2 [mm] [inch]	H3 [mm] [inch]	L1 [mm] [inch]	W1 [mm] [inch]	DN1	DN2	Weight [kg] [lb]
SCALA2	302	234	114	403	193	R 1	R 1	10
	11.9	9.2	4.5	15.9	7.6	NPT 1"	NPT 1"	22
