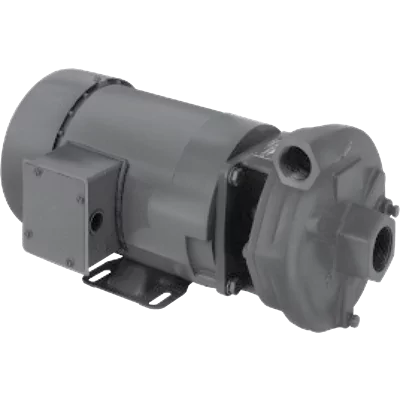

1¼” X 1" Petroleum 60 End Suction Centrifugal Pump

MP Pumps 1¼” X 1" Petroleum 60 End Suction Centrifugal Pump

The three models of this end suction centrifugal pump are SO 60, SG 60, and SE 60. This series of petroleum pumps is a jack of all trades because each model can pump a variety of petroleum products. The Petroleum 60 has a non-spark clamp built in, ensuring that it operates as efficiently as possible.

The versions are also available as PumPAKs® and were created to close-couple to 56C and 145TC frame electric motors.

rotation of the pump in 90° increments

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Suction And Discharge: 1 1 /4" x 1" NPT
Flow; Up to 65 GPM
Head; Feet Up to 115'
Impeller: SE 60 - enclosed cast iron, SG 60 - enclosed aluminum, SO 60 - enclosed cast iron
Motor: Up to 3 HP
Drive Options: Close coupled 56C, Hydraulic motor .37 cu. in., Hydraulic motor .45 cu. in., Hydraulic motor .58 cu. in., Close coupled 145TC, PumPAK® (without motor)
Seal: SE 60 . . . Type 2 viton/carbon/silicon carbide/SS, SG 60. . . Type 2 viton/carbon/silicon carbide/SS, SO 60. . . Type 21 viton/carbon/niresist/SS
Compatible For: SE 60 - Ethanol, E 85, SG 60 - Gasoline, Avgas, Kerosene, Jet A/8, SO 60 - Biodiesel, Fuel Oil, Diesel
Mounting Options: SE 60 - Explosion proof Class 1 Group D, SG 60 - Explosion proof Class 1 Group D, SO 60 - TEFC

Agricultural
Industrial
Marine
OEM

Non-spark clamp

ITEM NO.	PART NO.	DESCRIPTION	QTY.	ITEM NO.	PART NO.	DESCRIPTION	QTY.
1	21255	PIPE PLUG - S.S.- 1/8" N.P.T.	2	9	21865	#2 WOODRUFF KEY - S.S.	1
2	28595	HOUSING - DUCTILE IRON	1	*10	35610	SEAL - 1.0" - T-2 - CAR I SIC I VIT	1
*3	36124	GASKET - KLINGERSIL	1	11	28593	ADAPTER - DUCTILE IRON	1
4	22588	LOCK NUT - S.S. - 3/8-24	1	12	21266	LOCKWASHER - S.S. - 3/8"	4
5	31224	LOCKWASHER - S.S. - SELF LOCKING	1	13	21251	CAPSCREW - S.S. -3/8-16	4
6	27998	IMPELLER - CAST IRON - 05.47	1	14	24965	CAPSCREW - S.S. - 5/16-18	4
7	22133	SPRING HOLDER - S.S.	1	15	35613	CLAMP - B - 7/8"	1
*8	29032	DRIVE SLEEVE - S.S. - 718"	1	16	35182	ELECTRIC MOTOR - 2 H.P. 3 PH. 145TC	1
						EXPLOSION PROOF
