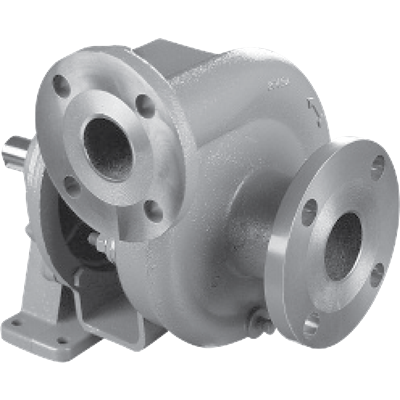

1-½” X 1-¼” Petroleum 80 End Suction Centrifugal Pump

MP Pumps 1-½” X 1-¼” Petroleum 80 End Suction Centrifugal Pump

MP's Petroleum 80 series, which is specifically made for fluids based on petroleum, comes in three different models: SO 80, SG 80, and SE 80.

The versions are also available as PumPAKs® and are made to close-couple to 56C and 145TC frame electric motors. Pedestal is one more mounting option.

rotation of the pump in 90° increments

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Suction And Discharge: 1 1 /2" x 1 1 /4" 150# flange
Flow: Up to 80 GPM
Head: Feet Up to 139'
Impeller: SE 80 - enclosed cast iron, SG 80 - enclosed aluminum, SO 80 - enclosed cast iron
Motor: Up to 3 HP
Drive Options: Close coupled 56C or 145TC, Hydraulic motor .37 cu. in., Hydraulic motor .45 cu. in., Hydraulic motor .58 cu. in., Pedestal, PumPAK® (without motor)
Seal: SE 80 . . . Type 2 viton/carbon/silicon carbide/SS, SG 80. . . Type 2 viton/carbon/silicon carbide/SS, SO 80. . . Type 21 viton/carbon/niresist/SS
Compatible For: SE 80 - Ethanol, E 85, SG 80 - Gasoline, Avgas, Jet A/8, SO 80 - Biodiesel, Fuel Oil, Diesel
Mounting Options: SE 80 - Explosion proof Class 1 Group D, SG 80 - Explosion proof Class 1 Group D, SO 80 - TEFC

Agricultural
Industrial
Marine
OEM

Non-spark clamp

ITEM NO.	PART NO.	DESCRIPTION	QTY.	ITEM NO.	PART NO.	DESCRIPTION	QTY.
1	21255	PIPE PLUG - S.S.- 1/8" N.P.T.	2	9	25332	ADAPTOR - CAST IRON	1
2	31871	HOUSING - DUCTILE IRON	1	10	21251	CAPSCREW - S.S. - 3/8-16 X .88"	4
3	21260	STUD - S.S. - 3/8-16 X 1.32"	6	11	21266	LOCKWASHER - S.S. - 3/8"	10
*4	25662	GASKET - KLINGERSIL	1	12	21268	HEXNUT - S.S. - 3/8-16"	6
5	22655	HEX JAM NUT - S.S. - 5/8-18	1	13	21264	CAPSCREW - S.S. - 5/16 X 18 X 1.75"	2
6	25910	IMPELLER - CAST IRON - 05.90	1	14	21238	LOCKWASHER - S.S. - 5/16"	2
7	25664	DRIVE SLEEVE - S.S.- 718"	1	15	21284	HEXNUT - S.S. - 5/16-18"	2
8	25460	SEAL T-21 - 1.0'' N.R.S.	1	16	21954	CLAMP - S.S. - 718" - S.L.	2
				17	25920	ELEC. MTR. - 3 H.P. 3 PH. 145TC TEFC	1
