UPS 200 Series Pumps - Grundfos UAE

Grundfos UPS 200 Series Pumps

The UP and UPS Series 200 consist of single- and three-speed circulator pumps crafted for both domestic and commercial heating systems. Their availability in a range of materials enhances their adaptability, making them suitable for a wide array of applications.

Max flow: 69 m³/h
Head max: 18 m
Liquid temperature: -10 .. 120 °C
p max: 10 bar

Suitable for

Commercial air conditioning
Commercial heating
Domestic heating
District cooling
District heating
Industrial heating

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

UPS
UPSD
UPS (B)

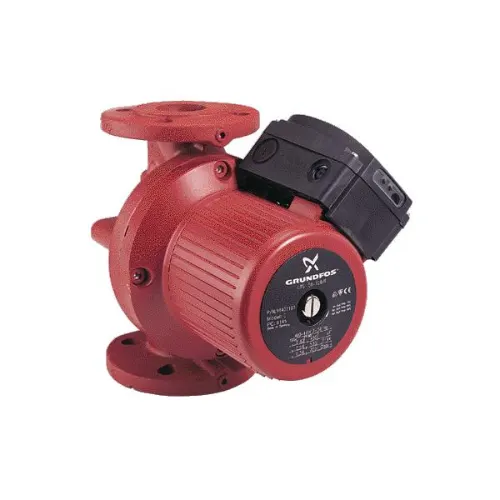

The UPS is a three-speed circulator pump engineered for heating and air-conditioning systems, as well as central and district heating systems. Renowned for its dependable and maintenance-free operation, this pump ensures consistent performance.

Duty Range

Max flow: 65 m³/h
Head max: 18 m
Liquid temperature: -10 .. 120 °C
p max: 10 bar

Model

UPS 80-120/2 F 360
UPS 80-60/4 F 360
UPS 65-185/2 F 340
UPS 65-180/2 F 340
UPS 65-120/2 F 340
UPS 65-60/2 F 340
UPS 50-185/2 F 280
UPS 50-180/2 F 280
UPS 50-120/2 F 280
UPS 50-60/2 F 280
UPS 40-185/2 F 250
UPS 40-180/2 F 250
UPS 40-120/2 F 250
UPS 40-60/2 F 250
UPS 32-120/2 F 220
UPS 32-60/2 F 220

UPSD is a twin-head version of the UPS three-speed pump, specifically engineered for heating and air-conditioning systems. It is employed in installations necessitating both primary and standby operations to enhance overall reliability.

Duty Range

Max flow: 29 m³/h
Head max: 10 m
Liquid temperature: -10 .. 120 °C
p max: 10 bar

Model

UPSD 50-120 F 280
UPSD 40-120 F 250
UPSD 40-60 F 250
UPSD 32-120 F 220

UPS B is a three-speed circulator pump featuring a durable bronze pump housing resistant to corrosion, tailored for hot-water recirculation. Renowned for its reliable and maintenance-free performance, this pump ensures consistent operation.

Duty Range
